N And P Channel ±40V MOSFET With Fast Switching Speed For DC Motor Control

Name: N And P Channel 40V MOSFET With Fast Switching Speed For DC Motor Control
Brand: JUYI
Price: 1 USD

Brand Name : JUYI

Model Number : JY2504NPM

Place of Origin : China

MOQ : 10set

Price : Negotiable

Payment Terms : L/C, T/T,Paypal

Supply Ability : 1000sets/day

Delivery Time : 5-8 working days

Packaging Details : PE bag+ carton

VBR(DSS) : ±40V

Package : DFN5*6

Color : black

Channel : N and P Channel

Contact Now

N and P Channel ±40V MOSFET with Fast Switching Speed for DC Motor Control

General Description

The JY2504NPM is the N and P Channel logic enhancement mode power field transistors Which can provide excellent RDS(ON) and low gate charge. The complementary MOSFETs may be used in H-bridge, Inverters and other applications.

FEATURES

● Low Input Capacitance

● Fast Switching Speed

APPLICATIONS

● Power Management

● DC/DC Converter

● DC Motor Control

● LCD TV & Monitor Display Inverter

● CCFL inverter

PIN DESCRIPTION

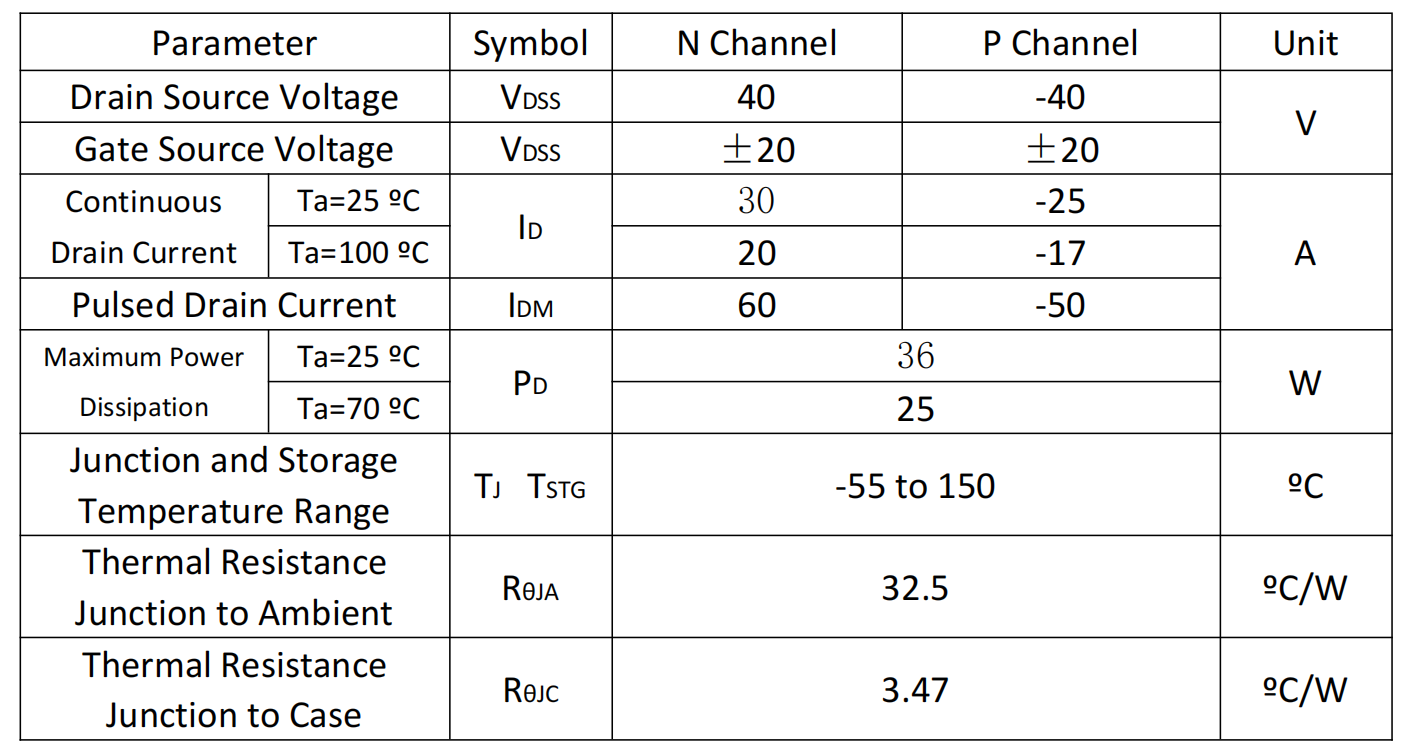

Absolute Maximum Ratings(Ta=25ºC Unless Otherwise Noted)

Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)

DOWNLOAD THE USER MANUAL OF JY2504NPM

JY2504NPM DFN5X6-English.PDF
